Covered in this doc
The tutorial assumes you're already familiar with Python and Selenium and focuses on using it with Percy. You'll still be able to follow along if you're not familiar with Python & Selenium, but we won't spend time introducing concepts.
Step 1: Clone the example application and install dependencies:
$ git clone https://github.com/percy/example-percy-python-selenium.git $ cd example-percy-python-selenium $ npm install $ pip -r requirements.txt
The example app and its tests will now be ready to go. You can explore the app by running
npm run serve and then opening the
localhost:8000 in a browser.
Step 2: Sign in to Percy, create a new organization, and create a new project. You can name both the organization and project 'todo' if you would like.
After you've created the project, you'll be shown a token environment variable.
Step 3: In the shell window you're working in, export the token environment variable:
# Windows $ set PERCY_TOKEN=<your token here> # Unix $ export PERCY_TOKEN=<your token here>
Note: Usually this would only be set up in your CI environment, but to keep things simple we'll configure it in your shell so that Percy is enabled in your local environment.
Step 4: Check out a new branch for your work in this tutorial (we'll call this branch
tutorial-example), run tests, and take snapshots:
$ git checkout -b tutorial-example $ npm run test
This will run the app's Selenium tests, which contain calls to create and upload Percy snapshots. The snapshots will then be uploaded to Percy for comparison. Percy will use the Percy token you used in Step 2 to know which organization and project to upload the snapshots to.

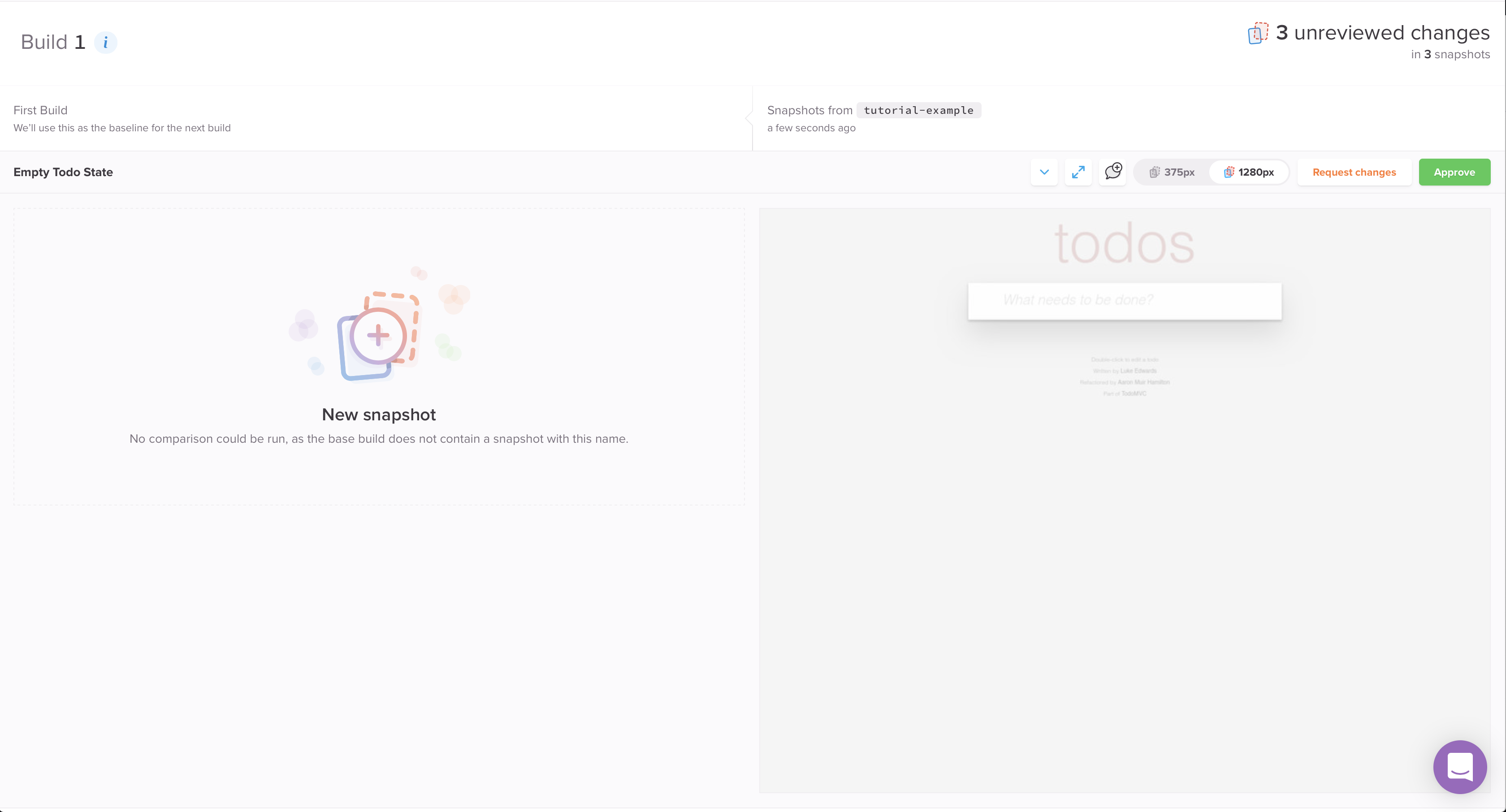

You can view the screenshots in Percy now if you want, but there will be no visual comparisons yet. You'll see that Percy shows you that these snapshots come from your
Step 5: Use your text editor to edit
index.html and introduce some visual change. For example, you can add a
<strong> tag to the "Clear completed" button on line 31. After the change, that line looks like this:
<button class="clear-completed"><strong>Clear completed</strong></button>
Step 7: Commit the change:
$ git add . && git commit -m "Emphasize 'Clear completed' button"
Step 8: Run the tests with snapshots again:
$ npm run test
This will run the tests again and take new snapshots of our modified application. The new snapshots will be uploaded to Percy and compared with the previous snapshots, showing any visual diffs.
At the end of the test run output, you will see logs from Percy confirming that the snapshots were successfully uploaded and giving you a direct URL to check out any visual diffs.

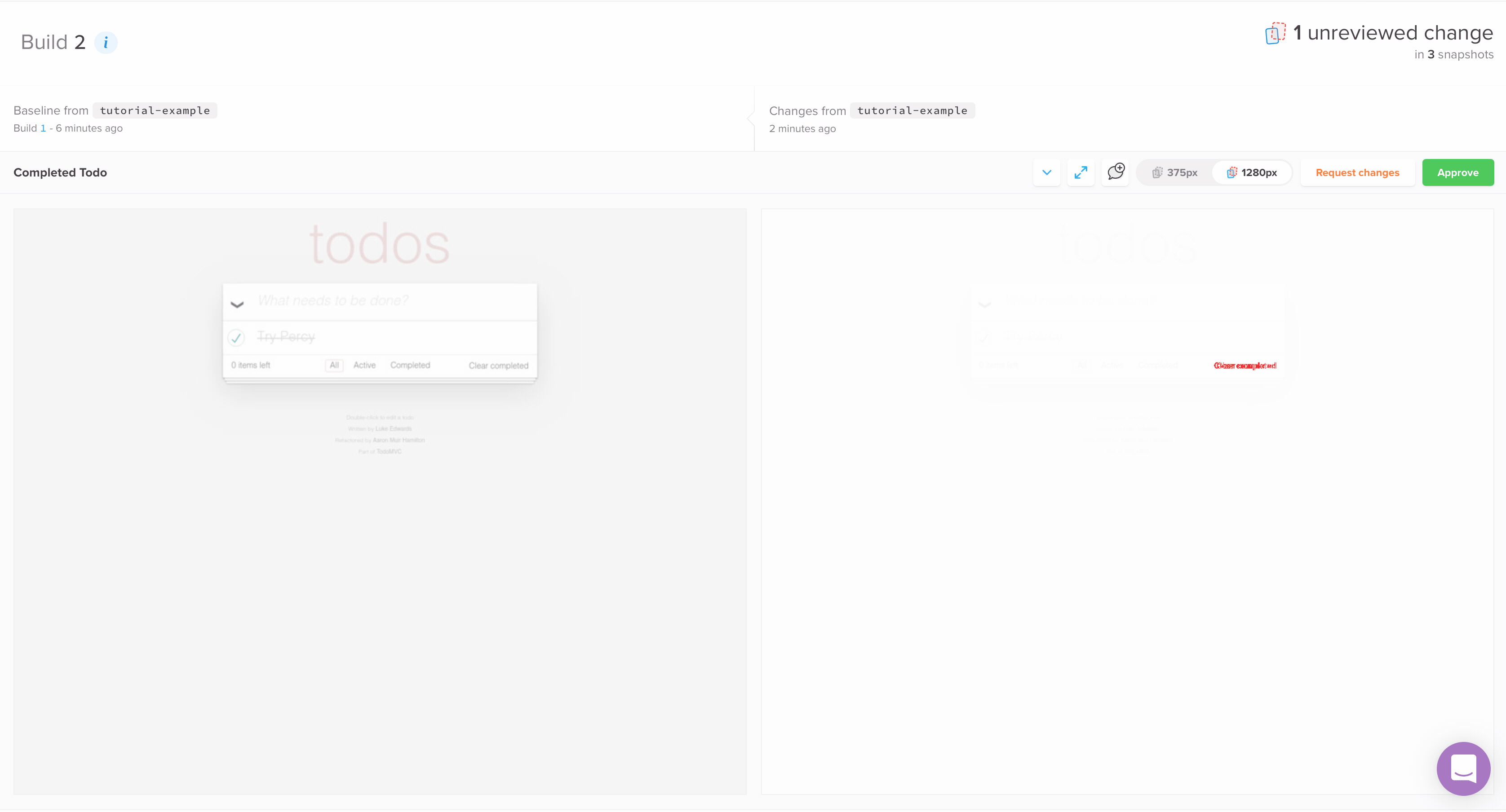

Step 9: Visit your project in Percy and you'll see a new build with the visual comparisons between the two runs. Click anywhere on the Build 2 row. You can see the original snapshots on the left, and the new snapshots on the right.
Percy has highlighted what's changed visually in the app! Snapshots with the largest changes are shown first You can click on the highlight to reveal the underlying screenshot.
If you scroll down, you'll see that no other test cases were impacted by our changes to the 'Clear completed' button. The unchanged snapshots appear grouped together at the bottom of the list.
From here, you can try making your own changes to the app and tests, if you like. If you do, re-run the tests, and then you'll see any visual changes reflected in Percy.
